Micro Line Mixer

The Micro Line Mixer is a 4 input stereo mixer that’s small enough to fit on a pedalboard. It’s ideal for creating parallel or wet/dry/wet guitar rigs, or for any place audio signals need to be combined.

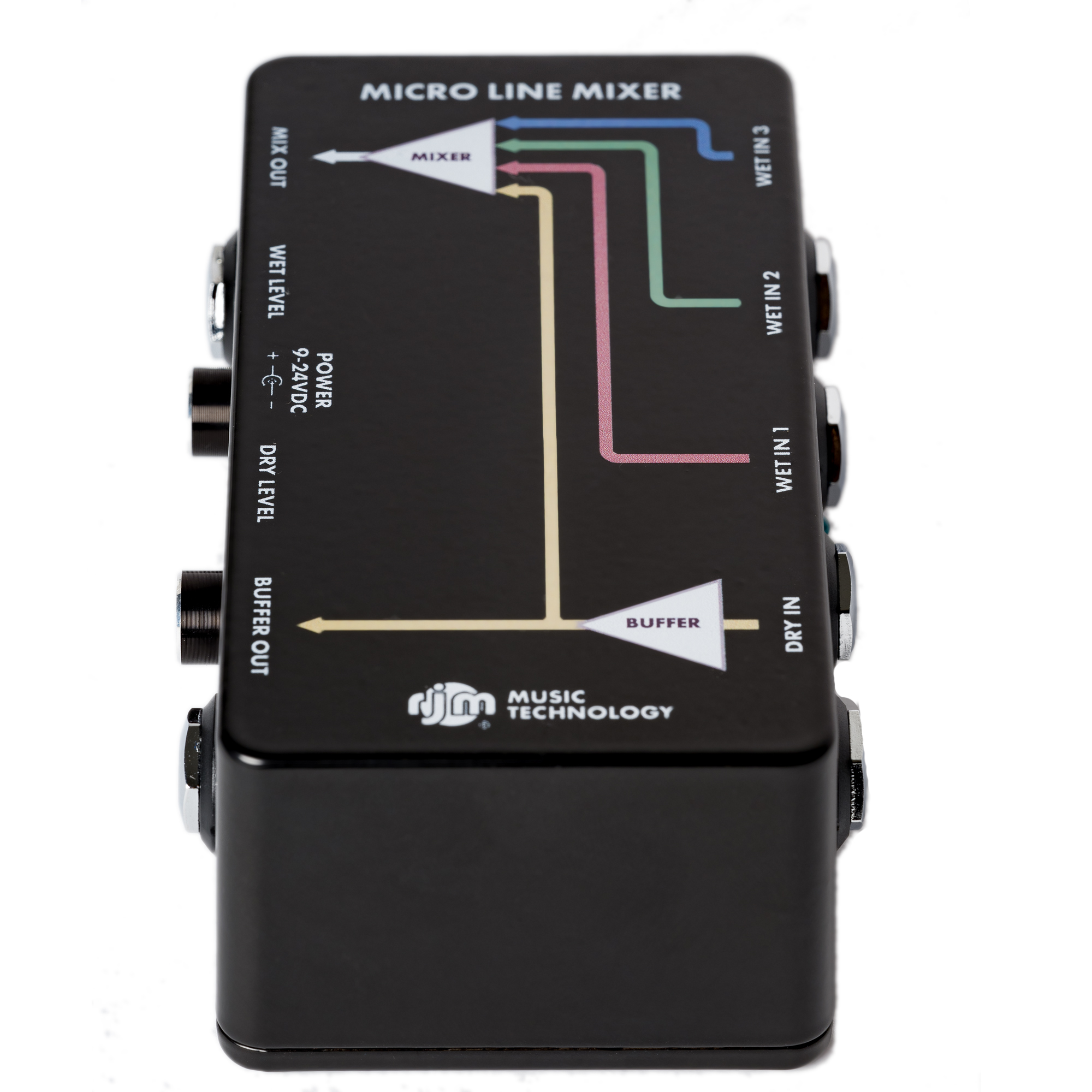

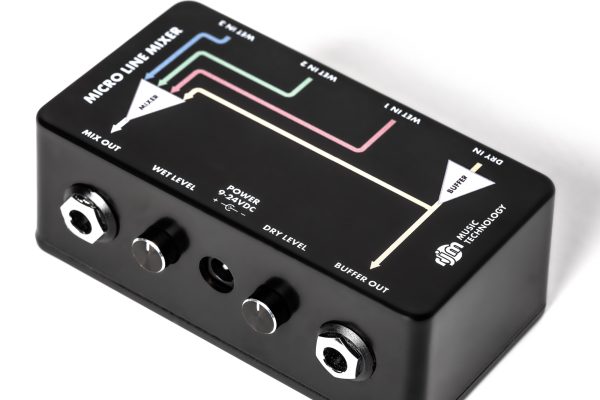

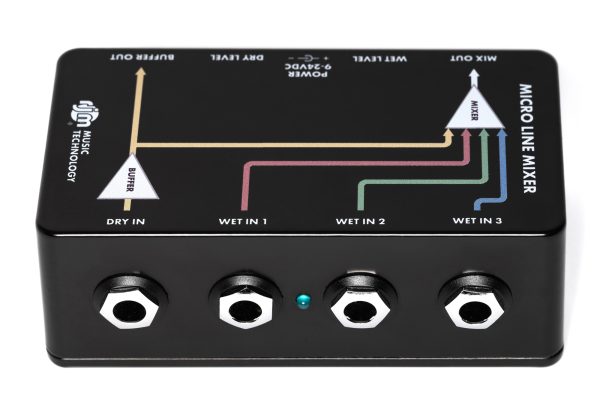

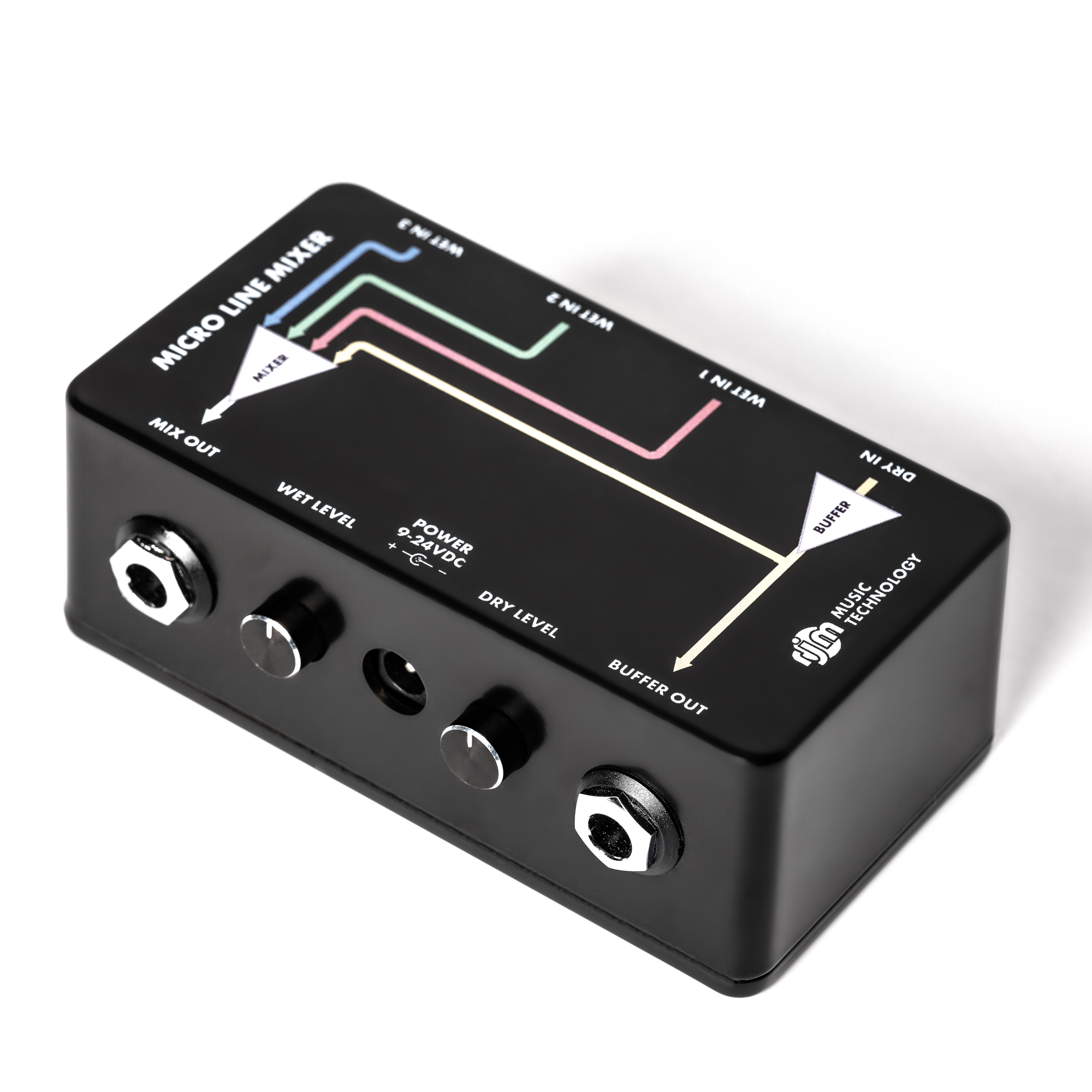

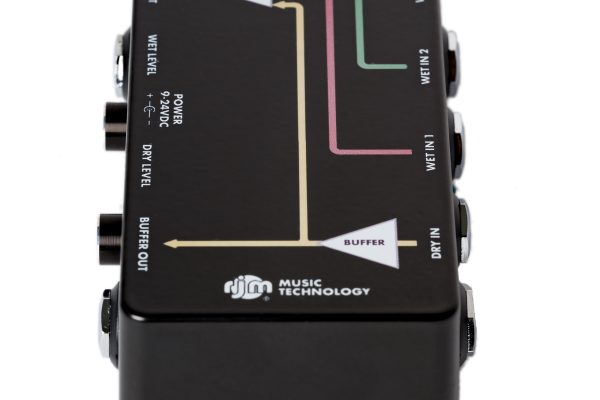

Micro Line Mxer Top View

The Micro Line Mixer is a simple product with many applications. It combines up to 4 incoming mono or stereo audio signals into one, which makes it useful for many purposes, for example:

Creating a parallel effect system

Creating a Wet/Dry/Wet effect system

Mixing multiple audio sources such as synthesizers, preamp outputs, etc.

Product Information


  • 1 – buffered “Dry” input, configurable for mono, stereo or mono-to-stereo operation
  • 3 – “Wet” inputs
  • 1 – Dry output, which is a buffered version of the signal at the Dry input
  • 1 – Mix output, which has all of the inputs mixed down into one signal
  • 1 – level control for the Dry input
  • 1 – level control for the Wet inputs
  • Power LED
  • 3 year limited warranty


  • Dry Input: 1MΩ input impedance
  • Wet Inputs: 100kΩ input impedance
  • Outputs: 150Ω output impedance
  • Level Controls: -∞ to unity gain
  • Frequency Response: 20Hz-20kHz
  • Headroom: +9dBV using 9V power supply, more with higher voltage power supplies
  • Power Requirements: 9-24V DC (center negative polarity), 50mA minimum. Power supply not included.
  • BOSS-type power connector, 5.5mm/2.1mm barrel connector
  • Dimensions: 4.41 (w) x 2.38 (d) x 1.65 (h) inches (11.20 (w) x 6.05 (d) x 4.19 (h) cm)
  • Weight: 0.5 lbs / 227g
  • Made in USA

Micro Line Mixer Quick Start Guide
